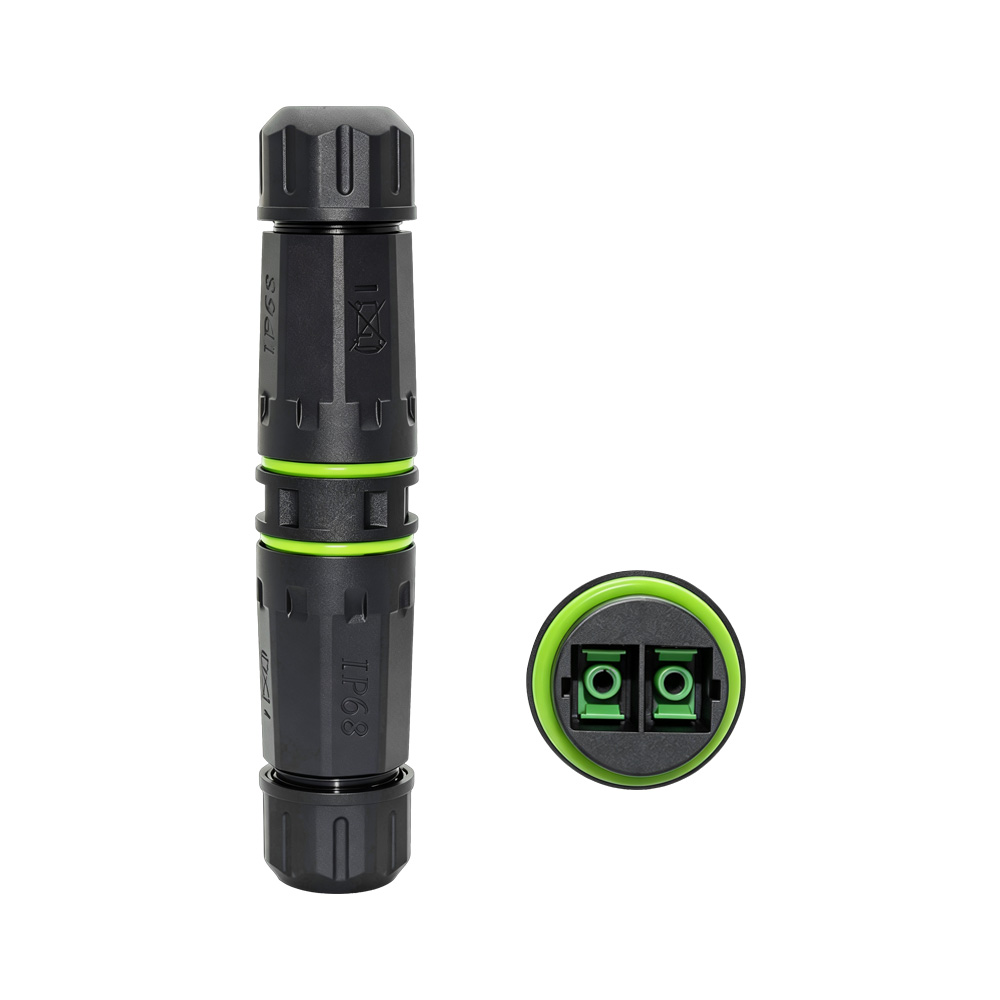

The EMM20-SC2C-A is an IP68 straight optical fiber connector configured for an SC duplex interface. It encloses the mating point in a slim cylindrical body, supporting detachable fiber connections in exposed equipment and outdoor network installations.
The 120×23mm assembly accepts 1.5–3.5 mm cable outside diameters and carries a catalog transfer-speed rating of 1000 Mbps. The listed construction uses nylon PA66, copper and a silicone sealing ring.
Key Features
• SC duplex optical interface
• IP68-rated sealed connector assembly
• 1000Mbps catalog transfer speed
• Slim straight housing for in-line use
• 1.5–3.5 mm cable OD range
Applications
• Outdoor SC fiber connections
• Industrial communication equipment
• Security and monitoring networks
• Field telecommunication devices
