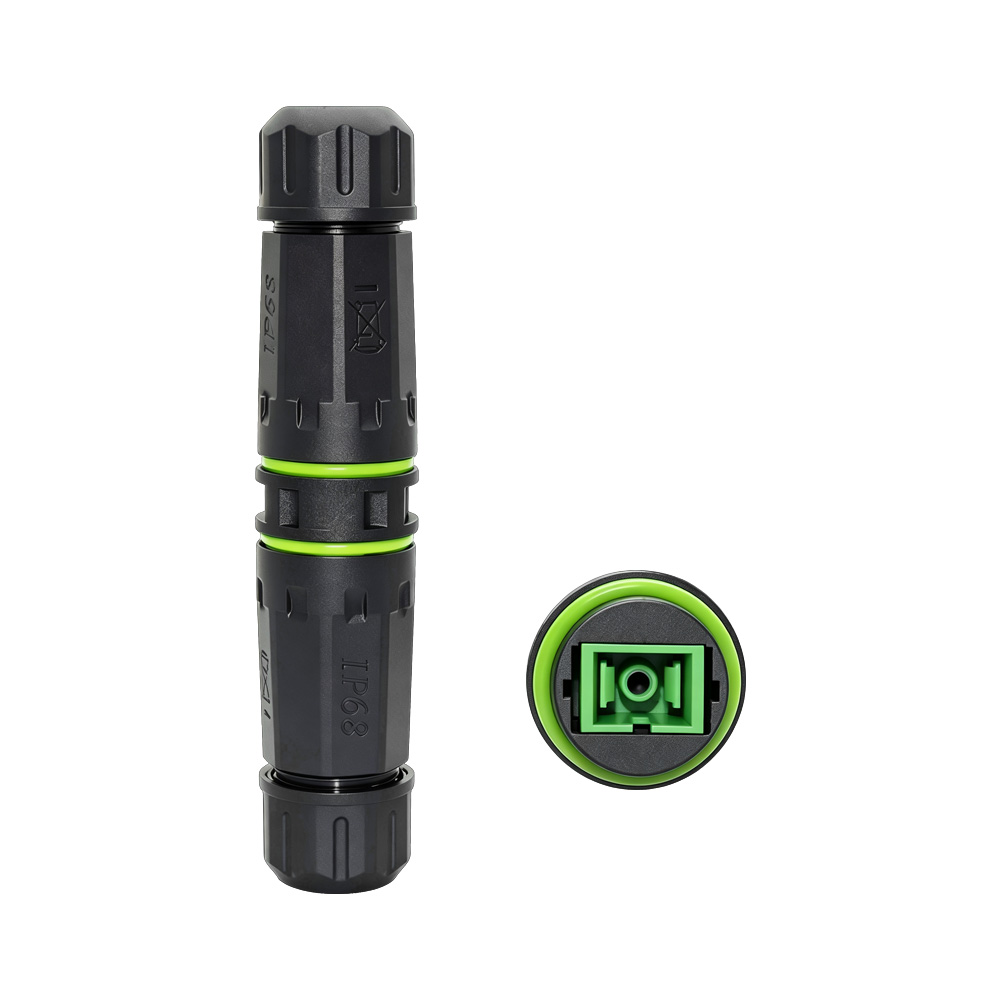

The EMM20-SC1C-A is an IP68 optical fiber connector designed around an SC simplex interface. It offers a protected single-channel fiber connection for field equipment that needs a removable optical link in wet or dusty locations.
This model accepts a wider 1.5–4.5 mm cable outside-diameter range and measures 123×23mm. The catalog specifies a 1000 Mbps transfer speed and a material combination of nylon PA66, copper and a silicone sealing ring.
Key Features
• SC simplex optical fiber interface
• IP68 protection for exposed connection points
• 1.5–4.5 mm cable OD range
• 1000Mbps catalog transfer speed
• Durable PA66 housing with silicone seal
Applications
• Single-channel outdoor fiber
• Industrial sensors
• Remote communication equipment
• fiber-connected control systems
